Cell cell communication
In this notebook, we show how to use Thor’s built in module to study cell-cell communication infer cell-level spatial transcriptome on a sample from human heart failure patients with myocardial infarction.
For installation of Thor, please refer to this installation guide.
[1]:
import sys
import os
import logging
import datetime
import numpy as np
import pandas as pd
import scanpy as sc
import seaborn as sns
import matplotlib.pyplot as plt
now = datetime.datetime.now()
print(f"Current Time: {now}")
here = os.getcwd()
print(f"Current Directory: {here}")
Current Time: 2025-02-03 14:43:46.021027
Current Directory: /Users/pengzhizhang/FINEST/notebooks/CCC_HF
[2]:
import commot as ct
import thor
from thor.analysis.ccc import split_pathways, run_commot, plot_commot
%config InlineBackend.figure_format = 'retina'
Load ligand-receptor database
[3]:
cc = ct.pp.ligand_receptor_database(database='CellChat', species='human')
cc
[3]:
| 0 | 1 | 2 | 3 | |
|---|---|---|---|---|
| 0 | TGFB1 | TGFBR1_TGFBR2 | TGFb | Secreted Signaling |
| 1 | TGFB2 | TGFBR1_TGFBR2 | TGFb | Secreted Signaling |
| 2 | TGFB3 | TGFBR1_TGFBR2 | TGFb | Secreted Signaling |
| 3 | TGFB1 | ACVR1B_TGFBR2 | TGFb | Secreted Signaling |
| 4 | TGFB1 | ACVR1C_TGFBR2 | TGFb | Secreted Signaling |
| ... | ... | ... | ... | ... |
| 1194 | UTS2B | UTS2R | UROTENSIN | Secreted Signaling |
| 1195 | UTS2B | SSTR5 | UROTENSIN | Secreted Signaling |
| 1196 | BAG6 | NCR3 | BAG | Secreted Signaling |
| 1197 | LGALS9 | HAVCR2 | GALECTIN | Secreted Signaling |
| 1198 | LGALS9 | CD44 | GALECTIN | Secreted Signaling |
1199 rows × 4 columns
[4]:
pathways_dict = split_pathways(cc, name_col_index=2)
pathways_dict['VEGF']
[4]:
| 0 | 1 | 2 | 3 | |
|---|---|---|---|---|
| 589 | VEGFA | FLT1 | VEGF | Secreted Signaling |
| 590 | VEGFA | KDR | VEGF | Secreted Signaling |
| 591 | VEGFB | FLT1 | VEGF | Secreted Signaling |
| 592 | VEGFC | FLT4 | VEGF | Secreted Signaling |
| 593 | VEGFC | KDR | VEGF | Secreted Signaling |
| 594 | VEGFD | FLT4 | VEGF | Secreted Signaling |
| 595 | VEGFD | KDR | VEGF | Secreted Signaling |
| 596 | PGF | FLT1 | VEGF | Secreted Signaling |
| 597 | VEGFA | FLT1_KDR | VEGF | Secreted Signaling |
| 598 | VEGFC | FLT4_KDR | VEGF | Secreted Signaling |
| 599 | VEGFD | FLT4_KDR | VEGF | Secreted Signaling |
Human Heart (spot level)
The heart failure tissue sample is downloaded from the study in a Nature paper “Spatial multi-omic map of human myocardial infarction”.
[5]:
sn = 'GT_IZ_P9_rep2'
ad_spot_path = f"{sn}_adata_spots_filtered_ref.h5ad"
ad = sc.read_h5ad(ad_spot_path)
[6]:
from thor.utils import convert_pixel_to_micron_visium
microns_per_pixel = convert_pixel_to_micron_visium(ad, res='fullres', spotDiameterinMicron=65)
distance = 100 # distance threshold in microns
distance_pixel = distance / microns_per_pixel
Use Thor’s API: run_commot for data preprocessing and run COMMOT
[7]:
database = 'CellChat'
pathway = 'VEGF'
ad_comm = run_commot(
ad,
database_name=database,
df_ligrec=pathways_dict[pathway],
dis_thr=distance_pixel,
heteromeric=True,
pathway_sum=True)

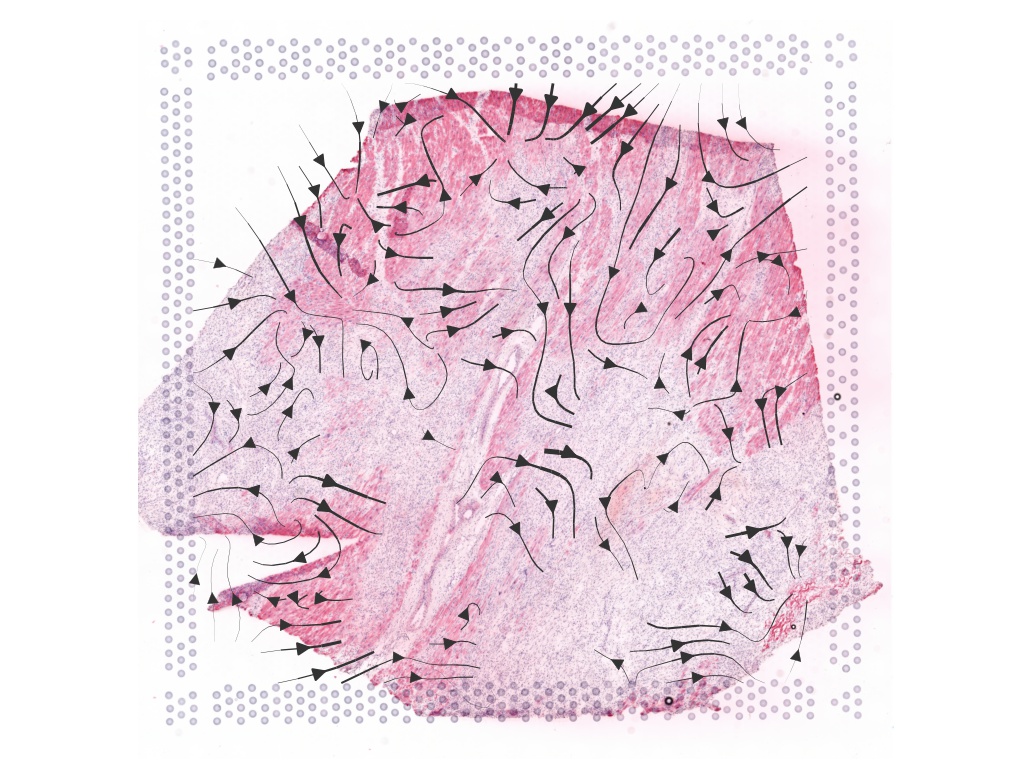

We can now check the directions of VEGF signals via a streamplot (spot level)
[8]:
plot_commot(ad_comm, database_name=database, pathway_name=pathway, plot_method='stream', background_legend=True,
scale=0.5, ndsize=8, grid_density=0.4, summary='sender', background='image', clustering='leiden', cmap='Alphabet',
normalize_v=True, normalize_v_quantile=0.995)

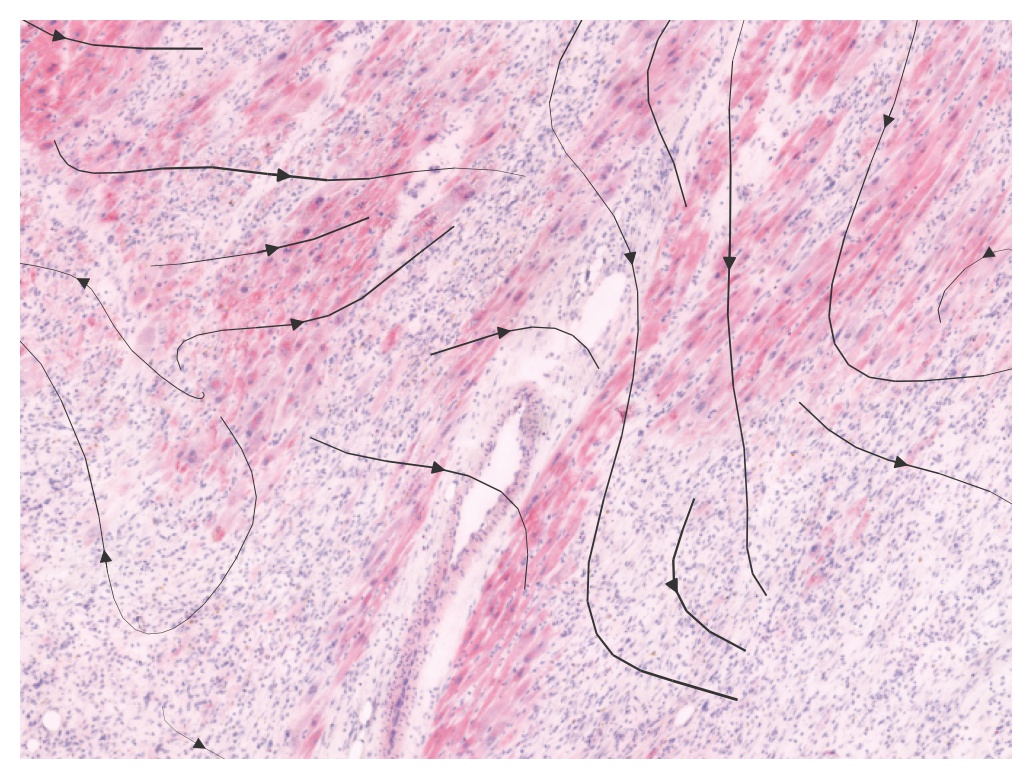

With the original spot data, VEGF signals are observed crossing a vessel region
[9]:
plot_commot(ad_comm, region=(4000, 5800, 3000, 5500), database_name=database, pathway_name=pathway, plot_method='stream', background_legend=True,
scale=0.5, ndsize=4, grid_density=0.4, summary='sender', background='image', clustering='leiden', cmap='Alphabet',
normalize_v=True, normalize_v_quantile=0.995)
Human Heart (cell level based on Thor)
Subsample 2 cells in every spot for efficiency
[10]:
ad_thor = sc.read_h5ad("GT_IZ_P9_rep2_adata_cells.h5ad")
ad_thor
[10]:
AnnData object with n_obs × n_vars = 48556 × 3059
obs: 'n_counts', 'n_genes', 'percent.mt', 'Adipocyte', 'Cardiomyocyte', 'Endothelial', 'Fibroblast', 'Lymphoid', 'Mast', 'Myeloid', 'Neuronal', 'Pericyte', 'Cycling.cells', 'vSMCs', 'cell_type_original', 'assay_ontology_term_id', 'cell_type_ontology_term_id', 'development_stage_ontology_term_id', 'disease_ontology_term_id', 'self_reported_ethnicity_ontology_term_id', 'is_primary_data', 'organism_ontology_term_id', 'sex_ontology_term_id', 'tissue_ontology_term_id', 'donor_id', 'suspension_type', 'cell_type', 'assay', 'disease', 'organism', 'sex', 'tissue', 'self_reported_ethnicity', 'development_stage', 'spot_barcodes', 'x', 'y', 'mean_gray', 'std_gray', 'entropy_img', 'mean_r', 'mean_g', 'mean_b', 'std_r', 'std_g', 'std_b', 'spot_heterogeneity', 'node_weights', 'imagerow', 'imagecol'
var: 'feature_is_filtered', 'feature_name', 'feature_reference', 'feature_biotype', 'highly_variable', 'means', 'dispersions', 'dispersions_norm', 'used_for_prediction', 'used_for_vae', 'used_for_reduced'
uns: 'X_approximate_distribution', 'cell_image_props', 'default_embedding', 'hvg', 'log1p', 'schema_version', 'snn', 'spatial', 'title'
obsm: 'X_pca', 'X_spatial', 'X_umap', 'spatial', 'spatial_distance'
obsp: 'snn_connectivities', 'snn_knn_connectivities', 'snn_transition_matrix'
[11]:
spot_barcodes = ad_thor.obs.spot_barcodes.drop_duplicates()
spot_barcodes = list(map(lambda x: str(x)+'-1', spot_barcodes)) + list(spot_barcodes)
ad_subsampled = ad_thor[ad_thor.obs.index.isin(spot_barcodes), :].copy()
ad_subsampled
[11]:
AnnData object with n_obs × n_vars = 8180 × 3059
obs: 'n_counts', 'n_genes', 'percent.mt', 'Adipocyte', 'Cardiomyocyte', 'Endothelial', 'Fibroblast', 'Lymphoid', 'Mast', 'Myeloid', 'Neuronal', 'Pericyte', 'Cycling.cells', 'vSMCs', 'cell_type_original', 'assay_ontology_term_id', 'cell_type_ontology_term_id', 'development_stage_ontology_term_id', 'disease_ontology_term_id', 'self_reported_ethnicity_ontology_term_id', 'is_primary_data', 'organism_ontology_term_id', 'sex_ontology_term_id', 'tissue_ontology_term_id', 'donor_id', 'suspension_type', 'cell_type', 'assay', 'disease', 'organism', 'sex', 'tissue', 'self_reported_ethnicity', 'development_stage', 'spot_barcodes', 'x', 'y', 'mean_gray', 'std_gray', 'entropy_img', 'mean_r', 'mean_g', 'mean_b', 'std_r', 'std_g', 'std_b', 'spot_heterogeneity', 'node_weights', 'imagerow', 'imagecol'
var: 'feature_is_filtered', 'feature_name', 'feature_reference', 'feature_biotype', 'highly_variable', 'means', 'dispersions', 'dispersions_norm', 'used_for_prediction', 'used_for_vae', 'used_for_reduced'
uns: 'X_approximate_distribution', 'cell_image_props', 'default_embedding', 'hvg', 'log1p', 'schema_version', 'snn', 'spatial', 'title'
obsm: 'X_pca', 'X_spatial', 'X_umap', 'spatial', 'spatial_distance'
obsp: 'snn_connectivities', 'snn_knn_connectivities', 'snn_transition_matrix'
Use Thor’s API: run_commot for data preprocessing and run COMMOT
[12]:
ad_thor_comm = run_commot(
ad_subsampled,
database_name=database,
df_ligrec=pathways_dict[pathway],
dis_thr=distance_pixel,
heteromeric=True,
pathway_sum=True)

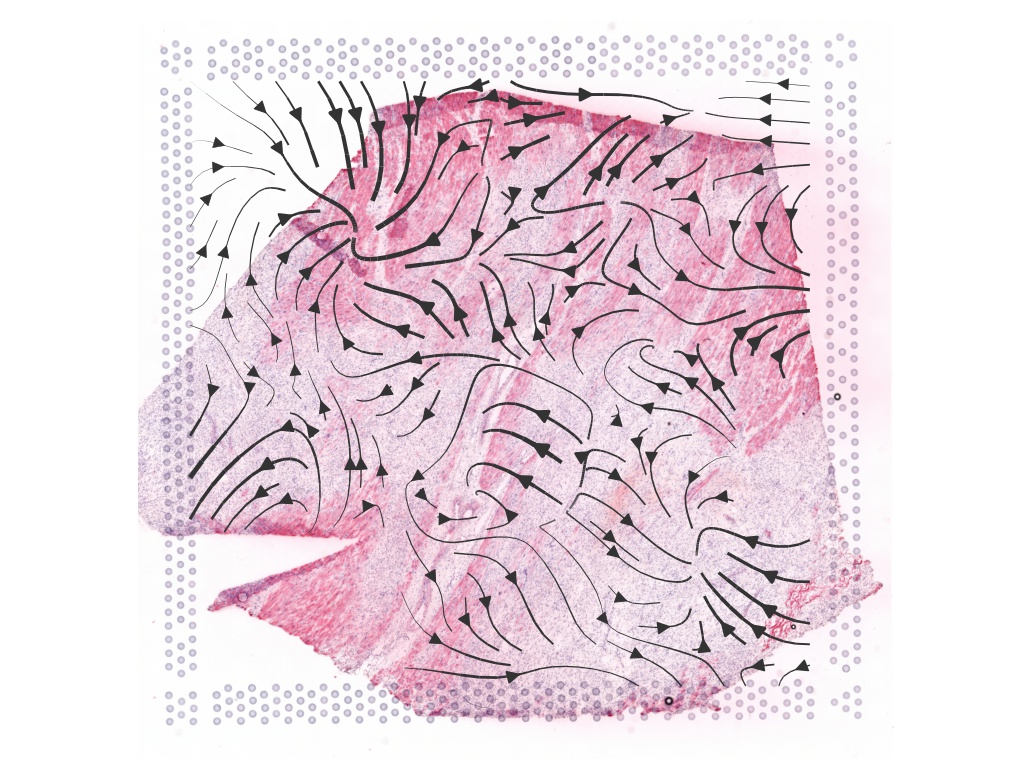

We can now check the directions of VEGF signals via a streamplot (cell level)
[13]:
plot_commot(ad_thor_comm, database_name=database, pathway_name=pathway, plot_method='stream', background_legend=True,
scale=0.5, ndsize=4, grid_density=0.2, summary='sender', background='image', clustering='leiden', cmap='Alphabet',
normalize_v=True, normalize_v_quantile=0.995)

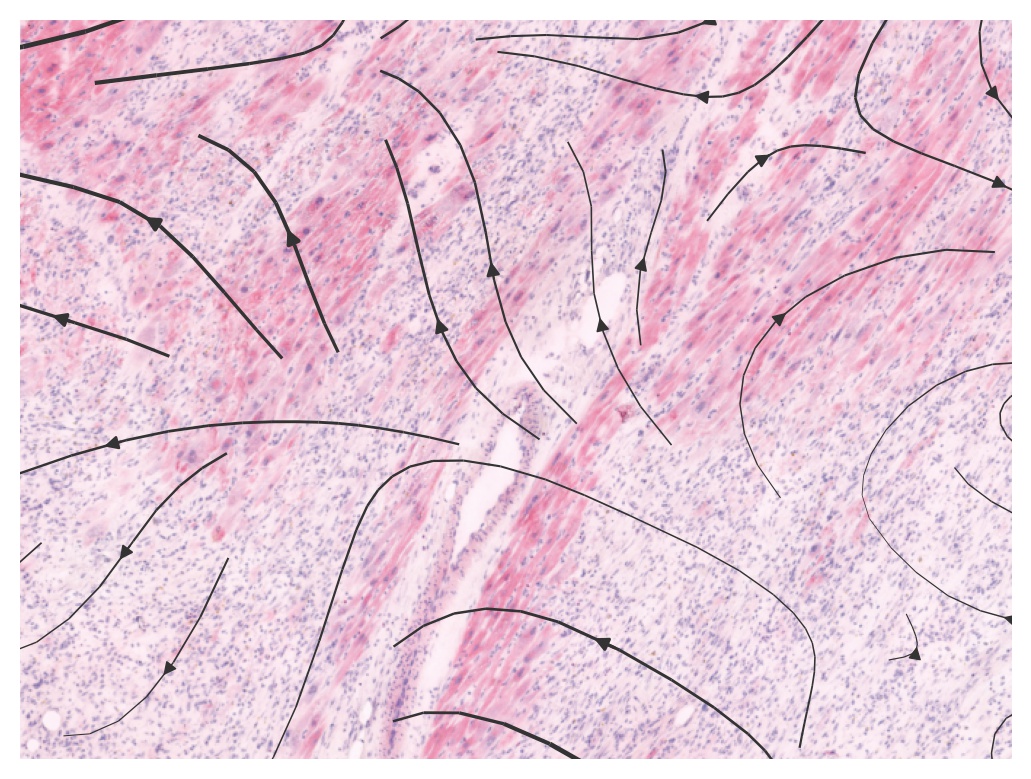

With Thor inferred data, VEGF signals are observed initialized from a vessel region, which makes more sense
[14]:
plot_commot(ad_thor_comm, region=(4000, 5800, 3000, 5500), database_name=database, pathway_name=pathway, plot_method='stream', background_legend=True,
scale=0.5, ndsize=4, grid_density=0.2, summary='sender', background='image', clustering='leiden', cmap='Alphabet',
normalize_v=True, normalize_v_quantile=0.995)
DEG along signaling pathways
[15]:
ad_thor_comm.layers['counts'] = np.expm1(ad_thor_comm.X)
df_deg, df_yhat = ct.tl.communication_deg_detection(
ad_thor_comm,
database_name=database,
pathway_name=pathway,
summary='receiver')
| | 0 % ~calculating |+ | 1 % ~01m 45s |++ | 2 % ~01m 37s |++ | 3 % ~01m 27s |+++ | 5 % ~01m 19s |+++ | 6 % ~01m 15s |++++ | 7 % ~01m 19s |++++ | 8 % ~01m 15s |+++++ | 9 % ~01m 13s |++++++ | 10% ~01m 15s |++++++ | 11% ~01m 15s |+++++++ | 12% ~01m 16s |+++++++ | 14% ~01m 13s |++++++++ | 15% ~01m 11s |++++++++ | 16% ~01m 09s |+++++++++ | 17% ~01m 07s |++++++++++ | 18% ~01m 08s |++++++++++ | 19% ~01m 06s |+++++++++++ | 20% ~01m 05s |+++++++++++ | 22% ~01m 04s |++++++++++++ | 23% ~01m 02s |++++++++++++ | 24% ~01m 01s |+++++++++++++ | 25% ~60s |++++++++++++++ | 26% ~59s |++++++++++++++ | 27% ~57s |+++++++++++++++ | 28% ~57s |+++++++++++++++ | 30% ~57s |++++++++++++++++ | 31% ~56s |++++++++++++++++ | 32% ~55s |+++++++++++++++++ | 33% ~54s |++++++++++++++++++ | 34% ~53s |++++++++++++++++++ | 35% ~52s |+++++++++++++++++++ | 36% ~51s |+++++++++++++++++++ | 38% ~50s |++++++++++++++++++++ | 39% ~49s |++++++++++++++++++++ | 40% ~48s |+++++++++++++++++++++ | 41% ~47s |++++++++++++++++++++++ | 42% ~46s |++++++++++++++++++++++ | 43% ~45s |+++++++++++++++++++++++ | 44% ~44s |+++++++++++++++++++++++ | 45% ~44s |++++++++++++++++++++++++ | 47% ~43s |++++++++++++++++++++++++ | 48% ~42s |+++++++++++++++++++++++++ | 49% ~41s |+++++++++++++++++++++++++ | 50% ~40s |++++++++++++++++++++++++++ | 51% ~39s |+++++++++++++++++++++++++++ | 52% ~38s |+++++++++++++++++++++++++++ | 53% ~38s |++++++++++++++++++++++++++++ | 55% ~37s |++++++++++++++++++++++++++++ | 56% ~36s |+++++++++++++++++++++++++++++ | 57% ~35s |+++++++++++++++++++++++++++++ | 58% ~34s |++++++++++++++++++++++++++++++ | 59% ~33s |+++++++++++++++++++++++++++++++ | 60% ~32s |+++++++++++++++++++++++++++++++ | 61% ~31s |++++++++++++++++++++++++++++++++ | 62% ~30s |++++++++++++++++++++++++++++++++ | 64% ~29s |+++++++++++++++++++++++++++++++++ | 65% ~28s |+++++++++++++++++++++++++++++++++ | 66% ~27s |++++++++++++++++++++++++++++++++++ | 67% ~26s |+++++++++++++++++++++++++++++++++++ | 68% ~25s |+++++++++++++++++++++++++++++++++++ | 69% ~24s |++++++++++++++++++++++++++++++++++++ | 70% ~24s |++++++++++++++++++++++++++++++++++++ | 72% ~23s |+++++++++++++++++++++++++++++++++++++ | 73% ~22s |+++++++++++++++++++++++++++++++++++++ | 74% ~21s |++++++++++++++++++++++++++++++++++++++ | 75% ~20s |+++++++++++++++++++++++++++++++++++++++ | 76% ~19s |+++++++++++++++++++++++++++++++++++++++ | 77% ~18s |++++++++++++++++++++++++++++++++++++++++ | 78% ~17s |++++++++++++++++++++++++++++++++++++++++ | 80% ~16s |+++++++++++++++++++++++++++++++++++++++++ | 81% ~15s |+++++++++++++++++++++++++++++++++++++++++ | 82% ~14s |++++++++++++++++++++++++++++++++++++++++++ | 83% ~14s |+++++++++++++++++++++++++++++++++++++++++++ | 84% ~13s |+++++++++++++++++++++++++++++++++++++++++++ | 85% ~12s |++++++++++++++++++++++++++++++++++++++++++++ | 86% ~11s |++++++++++++++++++++++++++++++++++++++++++++ | 88% ~10s |+++++++++++++++++++++++++++++++++++++++++++++ | 89% ~09s |+++++++++++++++++++++++++++++++++++++++++++++ | 90% ~08s |++++++++++++++++++++++++++++++++++++++++++++++ | 91% ~07s |+++++++++++++++++++++++++++++++++++++++++++++++ | 92% ~06s |+++++++++++++++++++++++++++++++++++++++++++++++ | 93% ~05s |++++++++++++++++++++++++++++++++++++++++++++++++ | 94% ~04s |++++++++++++++++++++++++++++++++++++++++++++++++ | 95% ~04s |+++++++++++++++++++++++++++++++++++++++++++++++++ | 97% ~03s |+++++++++++++++++++++++++++++++++++++++++++++++++ | 98% ~02s |++++++++++++++++++++++++++++++++++++++++++++++++++| 99% ~01s |++++++++++++++++++++++++++++++++++++++++++++++++++| 100% elapsed=01m 18s
2 parameter combinations, 2 use sequential method, 2 use subsampling method
Running Clustering on Parameter Combinations...
done.
[16]:
df_deg_clus, df_yhat_clus = ct.tl.communication_deg_clustering(df_deg, df_yhat, deg_clustering_res=0.1)

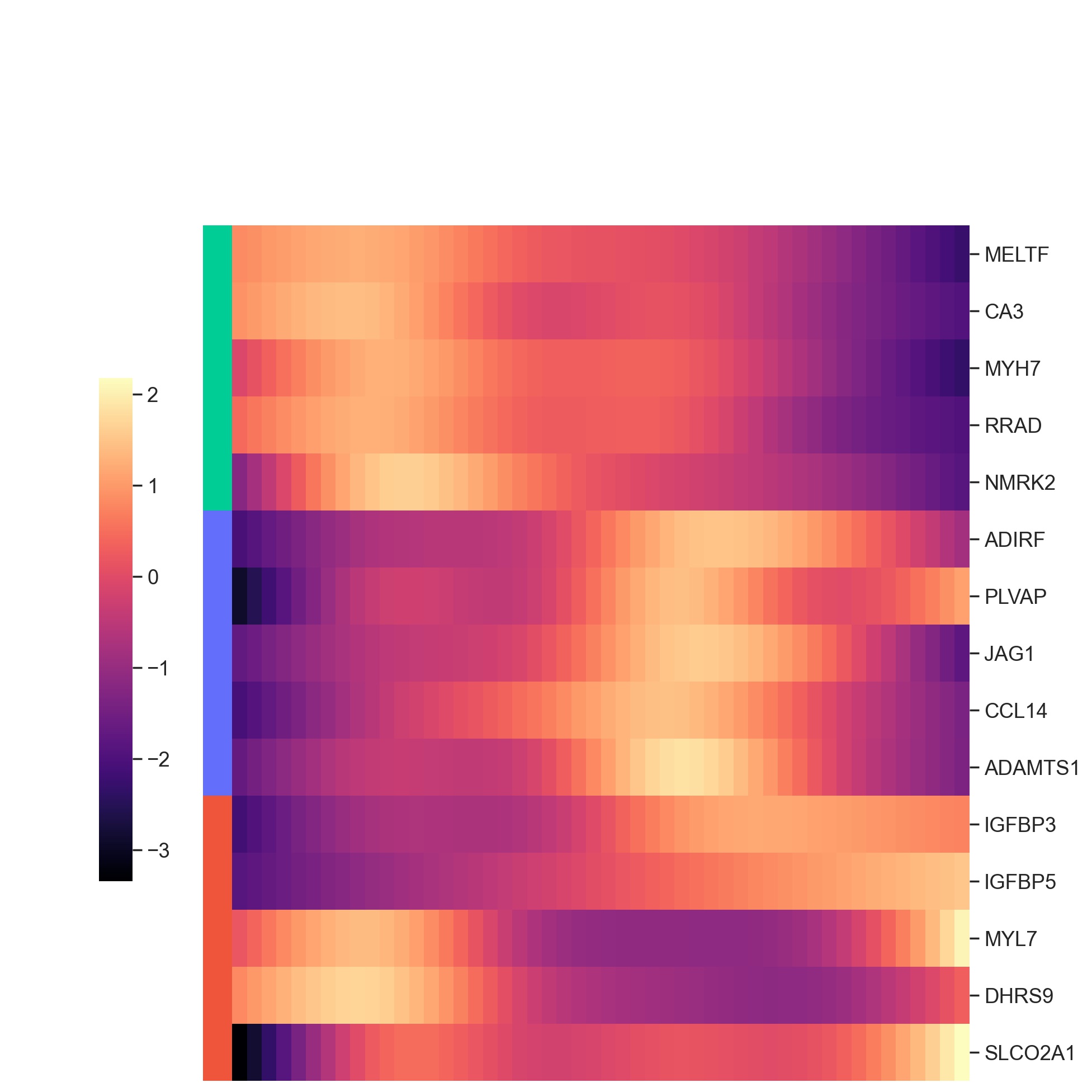

top_de_genes_VEGF = ct.pl.plot_communication_dependent_genes(
df_deg_clus,
df_yhat_clus,
top_ngene_per_cluster=5,
filename='./heatmap_deg_VEGF.pdf',
font_scale=1.2,
return_genes=True)
[17]:
def plot_genes(adata_dis500, pathway, genes, database=None):
X_sc = adata_dis500.obsm['spatial']
fig, ax = plt.subplots(1,3, figsize=(15,4))
colors = adata_dis500.obsm[f'commot-{database}-sum-sender'][f's-{pathway}'].values
idx = np.argsort(colors)
ax[0].scatter(X_sc[idx,0],X_sc[idx,1], c=colors[idx], cmap='coolwarm', s=2)
colors = adata_dis500[:,genes[0]].X.toarray().flatten()
idx = np.argsort(colors)
ax[1].scatter(X_sc[idx,0],X_sc[idx,1], c=colors[idx], cmap='coolwarm', s=2)
colors = adata_dis500[:,genes[1]].X.toarray().flatten()
idx = np.argsort(colors)
ax[2].scatter(X_sc[idx,0],X_sc[idx,1], c=colors[idx], cmap='coolwarm', s=2)

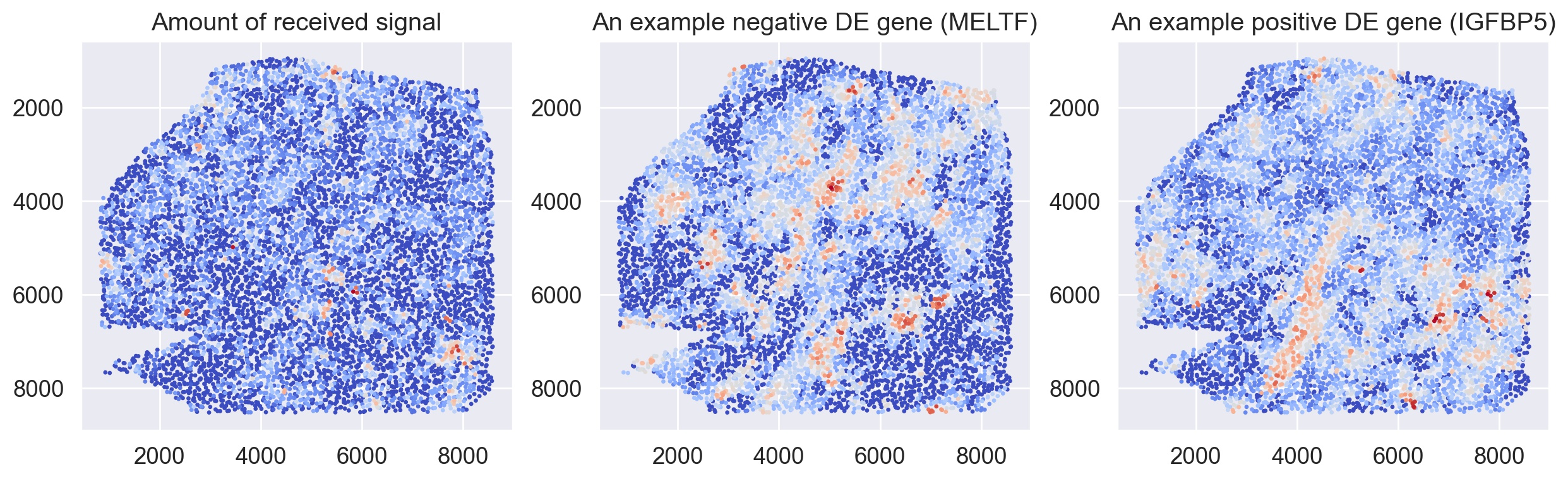

ax[0].set_title('Amount of received signal')
ax[1].set_title(f'An example negative DE gene ({genes[0]})')
ax[2].set_title(f'An example positive DE gene ({genes[1]})')
ax[0].invert_yaxis()
ax[1].invert_yaxis()
ax[2].invert_yaxis()
plt.show()
plot_genes(ad_thor_comm, pathway, ['MELTF', 'IGFBP5'], database=database)
[ ]:
